Ballast Testing

Ballast Testing

Select Application

Electronic Ballast Test Systems

Product Choices

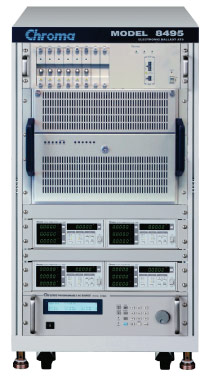

ATS Electronic Ballast Testing
  • AC Power Sources: Chroma 6400/6500/61500/61600/61700 Series
  • DC Power Supply: Chroma 62000P/62000B/62000H
  • DC Loads: Chroma 6310A/63600/63200/6300/6330A/63472 Series
  • Power Meters: Chroma 66200 Series
  • Timing & Noise Analyzer: Chroma 6011/80611 Series + 80611N
  • OVP/Short Ciurcuit: Chroma 80612 Series
  • Oscilloscope: Tektronix TDS, DPO Series; Lecroy WR LT Series, Agilent DSO, MSO Series

The Chroma Electronic Ballast Automated Test System is the test system of choice for lighting electronic ballast testing on the production line. It is able to test Multi-ballast/Multi-output concurrently improving productivity significantly.

Electronic Ballast System Block Diagram

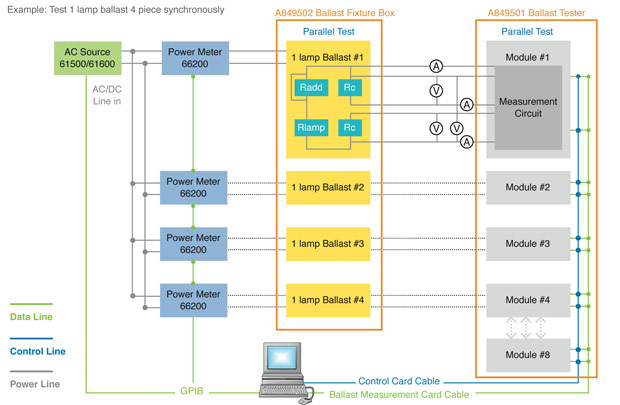

ATS Ballast Test Block Diagram

Input/Ouput Characteristics

  Maximum Input Voltage Maximum Input power Maximum Input Current Maximum Output Voltage Maximum Output Power Maximum Output Current Maximum Number of Outputs
AC/DC 500 VAC 54 KVA 432 A 600 VDC 78 KW 5,000 A 32

Optimized Equipment & Test Items

Due to the Electronic Ballast has high voltage & high frequency outputs, high accuracy Power Analyzers are required to measure its output performance and oscilloscopes to meet timing measurement requirements. These testing equipments are relatively expensive, increasing the cost of testing. With the Chroma testing solution, using the Electronic Ballast characteristic special design PCI interface cards & measurement module will significantly reduce the test equipments costs.

Chroma 8495 ATS is equipped with optimized standard test items for Electronic Ballast (the Unit Under Test), the user is only required to define the test conditions and specifications for the standard test items to perform the test.

The optimized test item covers 4 kinds of power supply test requirements. The "Output Performances" verifies the output characteristics of the UUT. The "Input Characteristics" checks the power supply input parameters. "Timing & Transient" tests the timing and transient states during power-on cycle. The "Protection Tests" trigger and tests the protection circuit.

Output Performances
  • 1. Heating Voltage
  • 2. Start-up Voltage
  • 3. Lamp Voltage
  • 4. Cathode Current
  • 5. Lamp Current
  • 6. Heating Frequency
  • 7. Lamp Frequency
  • 8. Efficiency
  • 9. Output Power
Input Characteristics
  • 10. Input Voltage
  • 11. Input Current
  • 12. Input Power
  • 13. Input Power Factor
  • 14. Input Crest Factor
  • 15. Energy
  • 16. THD
  • 17. IEC61000-3-2 Harmonic Test

Timing & Transient
  • 18. Heating Time
  • 19. Time to Standby

Protection Tests
  • 20. MPPT Accuracy

Software Platform of ATS Chroma 8000

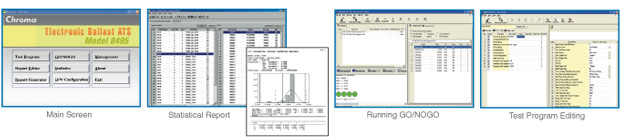

8495 ATS Soft Panel

Chroma C8000 ATS was designed specifically with Lighting Electronic Ballast characteristics in mind, with optimized standard test items covering 4 kinds of power supply test requirements. The "Output Characteristics" verifies the output characteristics of the UUT. The "Input Characteristics" checks the power supply input parameters. "Timing & Transient" tests the timing and transient states during power-on cycle. The "Protection Tests" trigger and test the protection circuit. With Chroma’s open architecture software, Power Pro III, future Electronic Ballast testing requirements can be easily added.

Chroma’s Power Pro III software comes packaged with report generator, statistical analysis and management functions allowing creation of test and statistical reports to meet modern quality control and production requirements.

More on Power Pro III

Expert Information

Our experienced ATS engineers can help you select the right system for your application. Contact Chroma Systems Solutions today!
